126179 FC-SCM-208 - DODGE

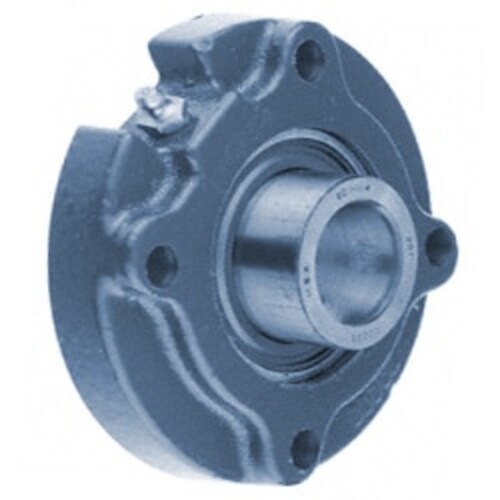

The Dodge 126179 FC-SCM-208 is a round-bore, four-bolt-piloted, spherical bearing unit. An expansion-type, or floating, bearing with a plain outer race track, the Dodge 126179 FC-SCM-208 is set in an uncoated cast-iron housing with a setscrew locking device and a triple-lip seal with flingers.
The Dodge 126179 FC-SCM-208 is useful in a variety of standard-duty applications, like conveyors, HVAC belt drives, textiles, medical processing and material handling.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.5 |
|---|---|
| Bore / Inner Diameter MM | 63.5 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 4.6 |
| Bolt Center to Center MM | 117 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Length Across Bore Inch | 2.234 |
| Length Across Bore MM | 56.744 |
| Cartridge Pilot Depth Inch | 1.125 |
| Cartridge Pilot Depth MM | 28.575 |
| Cartridge Pilot Diameter Inch | 5.5 |
| Cartridge Pilot Diameter MM | 139.7 |
