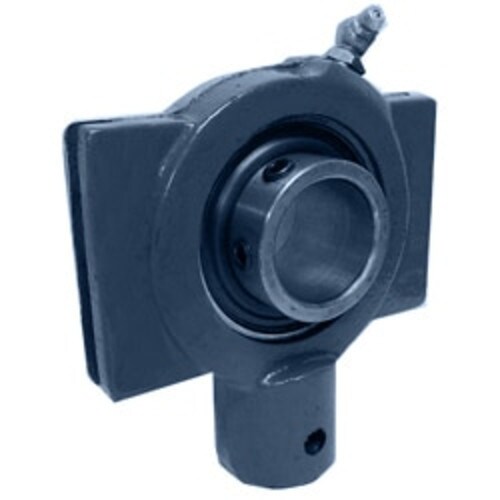

125162 NSTU-SC-207 - DODGE
- Length Across Bore Inch: 5
- Length Across Bore MM: 127
- Slot to Slot Distance Inch: 4.938
- Slot to Slot Distance MM: 125.425
- Slot Width Inch: 0.313
- Slot Width MM: 7.95
- Bearing Insert Part Number: INS-SC-207
- Bore / Inner Diameter Inch: 2.438
SPECIFICATIONS
| Length Across Bore Inch | 5 |
|---|---|
| Length Across Bore MM | 127 |
| Slot to Slot Distance Inch | 4.938 |
| Slot to Slot Distance MM | 125.425 |
| Slot Width Inch | 0.313 |
| Slot Width MM | 7.95 |
| Bearing Insert Part Number | INS-SC-207 |
| Bore / Inner Diameter Inch | 2.438 |
| Bore / Inner Diameter MM | 61.925 |
| Housing Style | Unit Only |
| Housing Material | Cast Iron |
| Bolt Center to Center Inch | 11 |
| Bolt Center to Center MM | 280 |
| Bearing Locking Style | Set Screw |
| Base to Center Height Inch | 3.74 |
| Base to Center Height MM | 94.996 |
| Compatible Take-Up Frame | NS415 |
