124270 F2B-SC-200 - DODGE

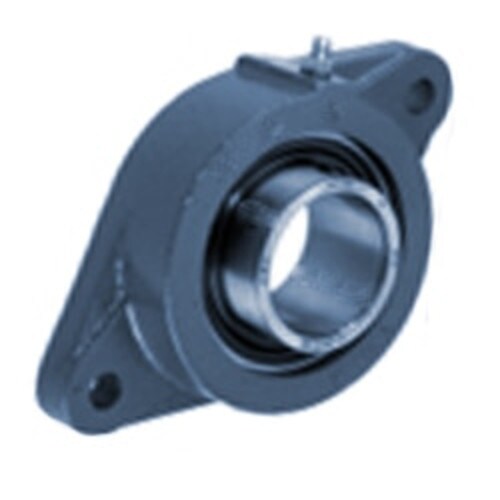

The DODGE 124270 F2B-SC-200 is a flange-type bearing that comprises of an outer cast iron bearing cage, an inner steel rod with a bore, and bearings that provide the roller mechanism. The bearing has a bore diameter of 6.188 inches and a bolt center-to-center length of nan inches. The center bore is designed to connect to a shaft of the appropriate size with a set screw locking mechanism for a firm fit. The entire bearing assembly secures on a firm surface with two bolts, which provide steadiness.
The standard-duty DODGE 124270 F2B-SC-200 bearing comes factory-lubricated and supports re-lubrication through an attached grease fitting. A nitrile rubber contact seal provides protection to the working parts from exposure to dirt while also preventing the grease from extruding.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2 |
|---|---|
| Bore / Inner Diameter MM | 50.8 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 6.188 |
| Bolt Center to Center MM | 157.175 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Flange Block |
| Split Housing | 1 Piece Solid |
| Length Across Bore Inch | 1.75 |
| Length Across Bore MM | 44.45 |
