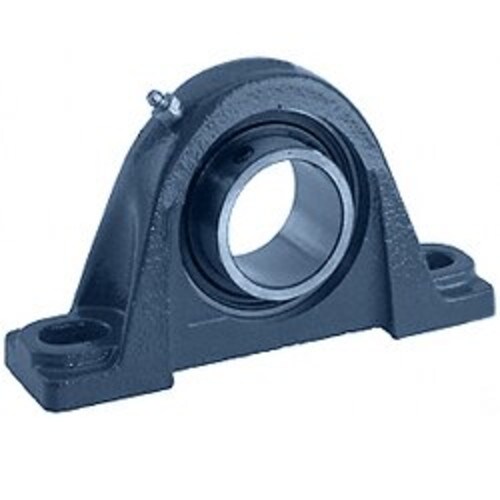

123823 P2B-SC-215 - DODGE
- Bore / Inner Diameter Inch: 2.938
- Bore / Inner Diameter MM: 74.625
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 9
- Bolt Center to Center MM: 229
- Max Nom Bolt Ctr to Ctr Inch: 9.5
- Max Nom Bolt Ctr to Ctr MM: 241.3
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.938 |
|---|---|
| Bore / Inner Diameter MM | 74.625 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 9 |
| Bolt Center to Center MM | 229 |
| Max Nom Bolt Ctr to Ctr Inch | 9.5 |
| Max Nom Bolt Ctr to Ctr MM | 241.3 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 8.5 |
| Min Nom Bolt Ctr to Ctr MM | 215.9 |
| Base to Center Height Inch | 3.5 |
| Base to Center Height MM | 88.9 |
