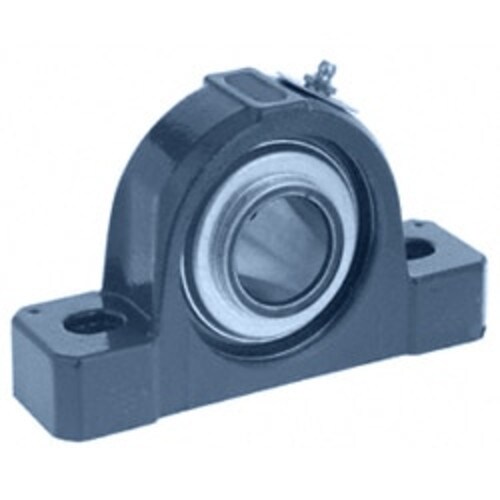

070328 P2B-S2-207L - DODGE
- Bore / Inner Diameter Inch: 2.438
- Bore / Inner Diameter MM: 61.925
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 7.1
- Bolt Center to Center MM: 181
- Max Nom Bolt Ctr to Ctr Inch: 7.313
- Max Nom Bolt Ctr to Ctr MM: 185.75
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.438 |
|---|---|
| Bore / Inner Diameter MM | 61.925 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 7.1 |
| Bolt Center to Center MM | 181 |
| Max Nom Bolt Ctr to Ctr Inch | 7.313 |
| Max Nom Bolt Ctr to Ctr MM | 185.75 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 6.938 |
| Min Nom Bolt Ctr to Ctr MM | 176.225 |
| Base to Center Height Inch | 2.75 |
| Base to Center Height MM | 69.85 |
