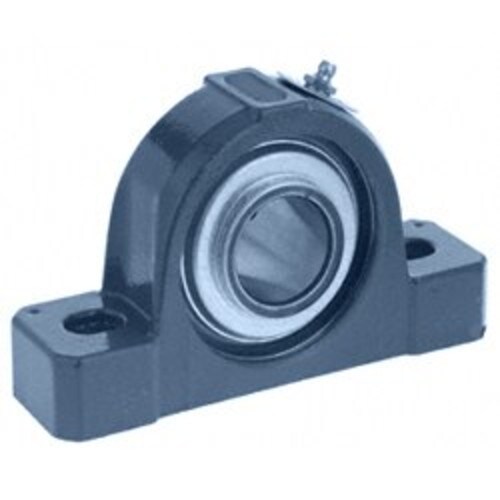

070324 P2B-S2-115L - DODGE
- Bore / Inner Diameter Inch: 1.938
- Bore / Inner Diameter MM: 49.225
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 6.2
- Bolt Center to Center MM: 160
- Max Nom Bolt Ctr to Ctr Inch: 6.438
- Max Nom Bolt Ctr to Ctr MM: 163.525
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.938 |
|---|---|
| Bore / Inner Diameter MM | 49.225 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 6.2 |
| Bolt Center to Center MM | 160 |
| Max Nom Bolt Ctr to Ctr Inch | 6.438 |
| Max Nom Bolt Ctr to Ctr MM | 163.525 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Min Nom Bolt Ctr to Ctr Inch | 6.063 |
| Min Nom Bolt Ctr to Ctr MM | 154 |
| Base to Center Height Inch | 2.25 |
| Base to Center Height MM | 57.15 |
