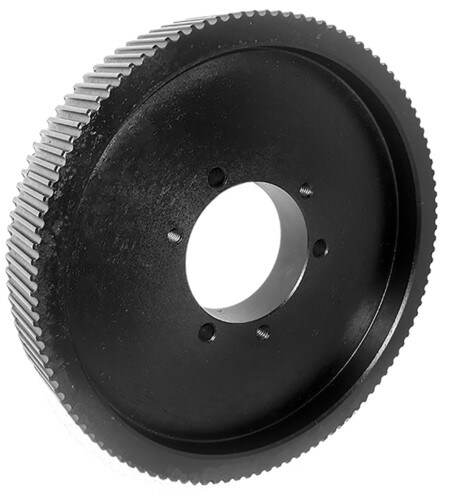

QD112-5M-25 - B & B MANUFACTURING
- Teeth: 112
- Tooth Style: HTD 5mm
- Type: D2
- Bushing Style: SDS
SPECIFICATIONS
| Teeth | 112 |
|---|---|
| Tooth Style | HTD 5mm |
| Type | D2 |
| Bushing Style | SDS |
| Bore Type | QD |
| Pitch Diameter Inch | 7.018 |
| Outer Diameter Inch | 6.973 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 2.000 |
| Face Width Inch | 1.23 |
| Overall Length Inch | 1.23 |
| Pitch Diameter MM | 178.257 |
| Outer Diameter MM | 177.114 |
| Face Width MM | 31.242 |
| Overall Length MM | 31.242 |
| Material | Cast Iron |
| Finish | Black Oxide |
