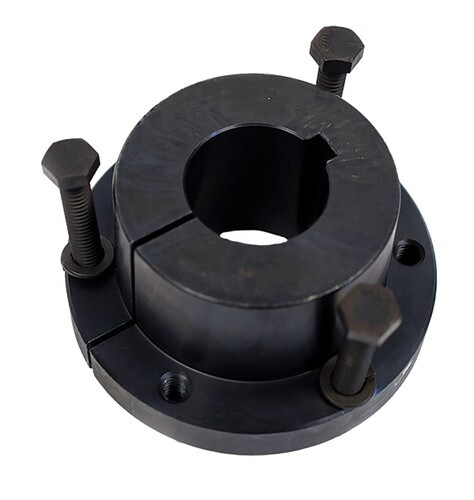

PX6-7/8 - B & B MANUFACTURING
- Bushing Style: P
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 6.875
- Minimum Bore Inch: 2.9375
SPECIFICATIONS
| Bushing Style | P |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 6.875 |
| Minimum Bore Inch | 2.9375 |
| Maximum Bore Inch | 7.000 |
| Bore / Inner Diameter MM | 174.625 |
| Thread Size | 1-8 x 9-1/2 |
| A Dim Inch | 1.75 |
| B Dim Inch | 8.25 |
| D Dim Inch | 11.75 |
| E Dim Inch | 7.625 |
| F Dim Inch | 7.25 |
| I Dim Inch | 9.375 |
| Torque Capacity Lb/Inch | 250000 |
| Bolt Circle Inch | 10 |
| Material | Steel |
| Finish | Black Oxide |
