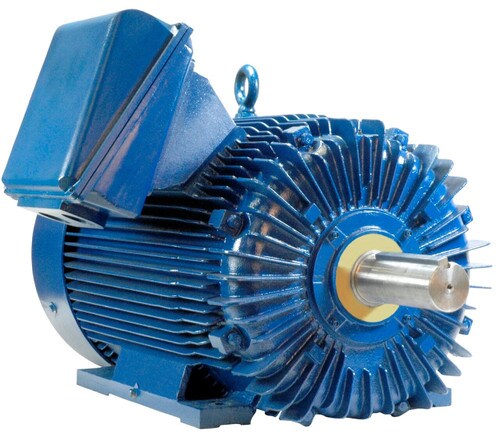

PE587UZ-450-6C-BB - NORTH AMERICAN
- HP: 450
- Phase: Three
- Full Load RPM: 1189
- Enclosure: TEFC
NEMA DESIGN C
- Maximum 5% Slip
- Low Starting Current
- High Locked Rotor Torque
- Normal Breakdown Torque
- Suited For Equipment With High Inertia And High Starting Torques At Start - Like Positive Displacement Pumps, Conveyors
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1200.0 |
| RPM | 1200.0 |
| Frame | 587UZ |
| Full Load Amps at Rated Voltage | 165.0 |
| Frequency Hz | 60.0 |
| Voltage | 460 VAC |
| Full Load Efficiency Percentage | 95.8 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | C |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 3250.0 |
| Power Factor | 0.858 |
| Drive End Bottom Bearing | 6324 |
| Opposite Drive End Upper Bearing | 6318 |
| Drive End Upper Bearing | 7232B |
| Opposite Drive End Bottom Bearing | 6318 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | PE587UZ-450-6C-BB |
| Weight (lbs) | 6041.2 |
| Application | Heavy Duty |
| HP Range | 450.0 |
| HP | 450.0 |
| GTIN | 192999055359 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1200.0 |
