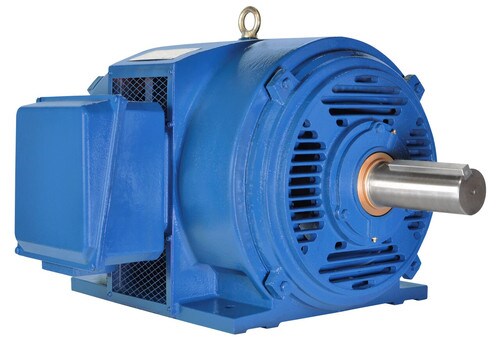

PE404T-100-4-BB-ODP - NORTH AMERICAN
- HP: 100
- Phase: Three
- Full Load RPM: 1785
- Enclosure: ODP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 404T |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 725.0 |
| Power Factor | 0.87 |
| Drive End Bottom Bearing | 6318 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE404T-100-4-BB-ODP |
| Weight (lbs) | 1115.0 |
| Application | Heavy Duty |
| HP Range | 100.0 |
| HP | 100.0 |
| GTIN | 192999078716 |
| Motor Enclosure Type | ODP|Open |
| RPM Range | 1800.0 |
