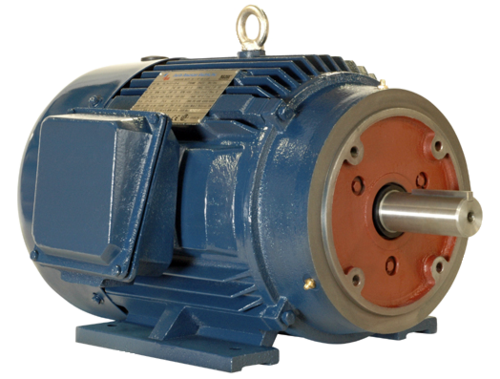

PE254TC-15-4-RB-AI - NORTH AMERICAN
This product has superseded PE254TC-15-4-RB
- HP: 15
- Phase: Three
- Full Load RPM: 1750
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
Material | Cast Iron |
---|---|
Full Load RPM | 1750.0 |
RPM | 1800.0 |
Frame | 254TC |
Full Load Amps at Rated Voltage | 70.0 |
Frequency Hz | 60.0 |
Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
Full Load Efficiency Percentage | 95.0 |
Service Factor | 1.15 |
Insulation Class | F |
NEMA Design | B |
NEMA Code | G |
Locked Rotor Amps at Rated Voltage | 116.0 |
Power Factor | 0.86 |
Drive End Bottom Bearing | 6309 |
Opposite Drive End Upper Bearing | 6313/C3 |
Drive End Upper Bearing | 6313/C3 |
Opposite Drive End Bottom Bearing | 6313/C3 |
Inverter Rated or Duty | Inverter Duty |
Phase | Three Phase |
Model Number | PE254TC-15-4-RB-AI |
Weight (lbs) | 328.0 |
Application | Heavy Duty |
HP Range | 15.0 |
HP | 15.0 |
GTIN | 192999017548 |
Enclosure Height Inch | 18.1 |
Enclosure Height MM | 459.74 |
Enclosure Length Inch | 26.62 |
Enclosure Length MM | 676.148 |
Motor Enclosure Type | Totally Enclosed|TEFC |
RPM Range | 1800.0 |
