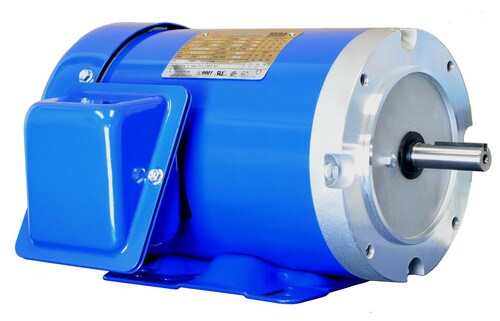

F56C1/2M4A - NORTH AMERICAN

(0)No Reviews yet
$174.37

Details

Details

MaterialRolled Steel
Full Load RPM1800.0
RPM1800.0
Frame56C
Full Load Amps at Rated Voltage12.8
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage89.5
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeL
Locked Rotor Amps at Rated Voltage4.7
Power Factor0.65
Drive End Bottom Bearing6203-2RZC3
Opposite Drive End Upper Bearing6208-ZZ
Drive End Upper Bearing6208-ZZ
Opposite Drive End Bottom Bearing6208-ZZ
Inverter Rated or DutyInverter Rated
PhaseThree Phase
Model NumberF56C1/2M4A
Weight (lbs)22.0
HP Range0.5
HP0.5
GTIN192999000649
Enclosure Height Inch11.2
Enclosure Height MM284.48
Enclosure Length Inch16.54
Enclosure Length MM420.116
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range1800.0

UNIT PRICE:

$174.37



UNIT PRICE:

SPECIFICATIONS

MaterialRolled Steel
Full Load RPM1800.0
RPM1800.0
Frame56C
Full Load Amps at Rated Voltage12.8
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage89.5
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeL
Locked Rotor Amps at Rated Voltage4.7
Power Factor0.65
Drive End Bottom Bearing6203-2RZC3
Opposite Drive End Upper Bearing6208-ZZ
Drive End Upper Bearing6208-ZZ
Opposite Drive End Bottom Bearing6208-ZZ
Inverter Rated or DutyInverter Rated
PhaseThree Phase
Model NumberF56C1/2M4A
Weight (lbs)22.0
HP Range0.5
HP0.5
GTIN192999000649
Enclosure Height Inch11.2
Enclosure Height MM284.48
Enclosure Length Inch16.54
Enclosure Length MM420.116
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range1800.0
