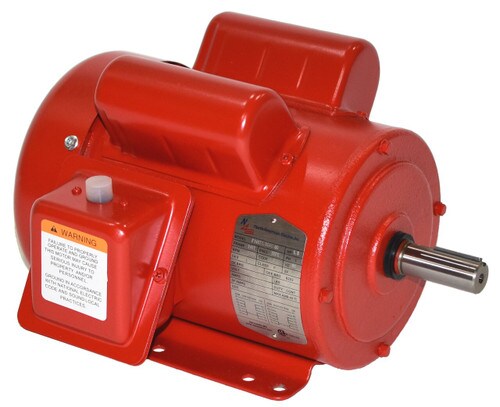

F184T5S2C-MO - NORTH AMERICAN
- HP: 5
- Full Load RPM: 3490
- Enclosure: TEFC
- Frame: 184T
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 3600.0 |
| RPM | 3600.0 |
| Frame | 184T |
| Full Load Amps at Rated Voltage | 2.7 |
| Frequency Hz | 60.0 |
| Voltage | 230/460 VAC|230 VAC|460 VAC |
| Full Load Efficiency Percentage | 85.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | L |
| NEMA Code | D |
| Locked Rotor Amps at Rated Voltage | 99.38 |
| Power Factor | 0.99 |
| Drive End Bottom Bearing | 6206-2RZC3 |
| Opposite Drive End Upper Bearing | 6205-ZZ |
| Drive End Upper Bearing | 6206-ZZ |
| Opposite Drive End Bottom Bearing | 6205-ZZ |
| Phase | Single Phase |
| Model Number | F184T5S2C-MO |
| Weight (lbs) | 115.0 |
| HP Range | 5.0 |
| HP | 5.0 |
| GTIN | 192999028070 |
| Enclosure Height Inch | 7.1 |
| Enclosure Height MM | 180.34 |
| Enclosure Length Inch | 20.3 |
| Enclosure Length MM | 515.62 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 3600.0 |
