687-2 - TIMKEN

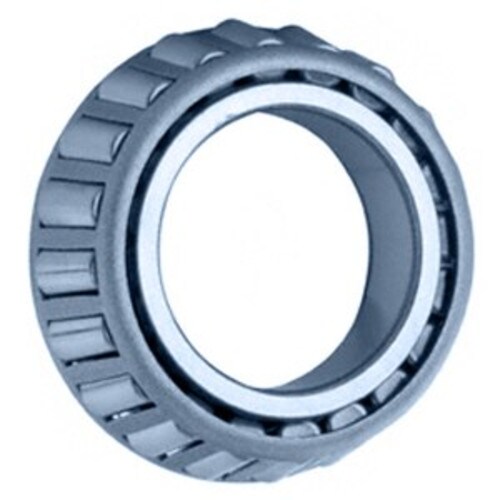

- 687-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 4 |
|---|---|
| Bore / Inner Diameter MM | 101.6 |
| Cone Width Inch | 1.6250 |
| Cone Width MM | 41.275 |
| Model Number | 687 |
| Series | 675 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 265000 |
| Dynamic Load Capacity lbf | 59500 |
| Static Load Capacity N | 386000 |
| Static Load Capacity lbf | 86700 |
| Rating | Class 2 |
| Inner Ring Width Inch | 1.625 |
| Inner Ring Width MM | 41.3 |
| Weight (lbs) | 4.592 |
