612-2 - TIMKEN

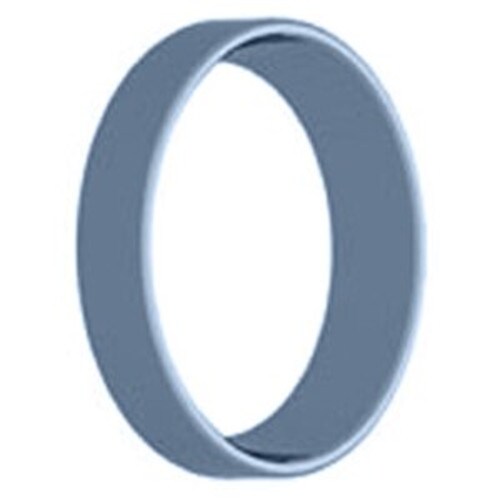

- 612-2 - TIMKEN Tapered Roller Bearing Cups
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Cup Width Inch | 1.25 |
|---|---|
| Cup Width MM | 31.75 |
| Outside Diameter Inch | 4.75 |
| Outside Diameter MM | 120.65 |
| In Or Metric | Imperial |
| Model Number | 612 |
| Series | 615615 Single Cups Imperial |
| Rating | Class 2 |
| Outer Ring Width Inch | 1.25 |
| Outer Ring Width MM | 31.8 |
| Weight (lbs) | 1.953 |
