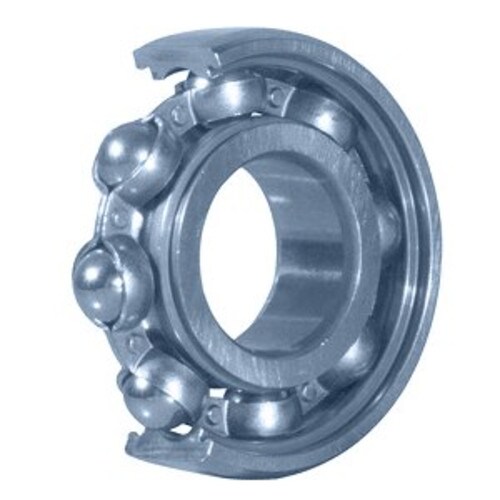

6005 - FAG BEARING
- 6005 Ball Bearing
- Bore / Inner Diameter Inch:0.984
- Bore / Inner Diameter MM:25
- Outside Diameter Inch:1.85
- Outside Diameter MM:47
- Width Inch:0.472
- Width MM:12
- Series:
- Replacing:
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.984 |
|---|---|
| Bore / Inner Diameter MM | 25 |
| Outside Diameter Inch | 1.85 |
| Outside Diameter MM | 47 |
| Width Inch | 0.472 |
| Width MM | 12 |
| Max Speed RPM | 21900 |
| Reference Speed RPM | 15200 |
| Minimum Temperature C | -30 |
| Maximum Temperature C | 120 |
| Dynamic Load Capacity N | 10700 |
| Dynamic Load Capacity N Radial | 10700 |
| Static Load Capacity N | 5900 |
| Static Load Capacity N Radial | 5900 |
