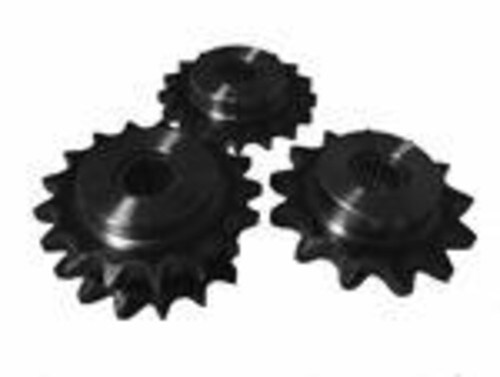

40DB19-IDLER - B & B MANUFACTURING
- Teeth: 19
- Tooth Style: 40
- Type: DB
- Bore Type: Idler
SPECIFICATIONS
| Teeth | 19 |
|---|---|
| Tooth Style | 40 |
| Type | DB |
| Bore Type | Idler |
| Pitch Diameter Inch | 3.038 |
| Outer Diameter Inch | 3.296 |
| Bore / Inner Diameter Inch | 1 |
| Face Width Inch | 1.25 |
| Overall Length Inch | 1.25 |
| Pitch Diameter MM | 77.165 |
| Outer Diameter MM | 83.718 |
| Bore / Inner Diameter MM | 25.4 |
| Face Width MM | 31.75 |
| Overall Length MM | 31.75 |
| Material | Steel |
| Finish | Black Oxide |
