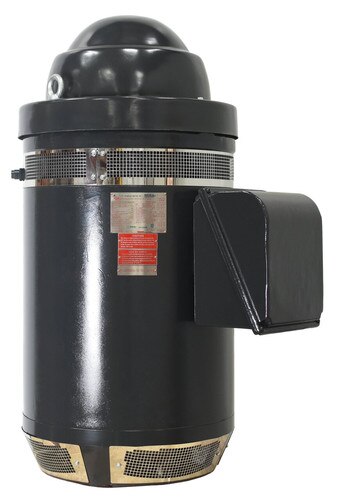

V2-40D4-W32416A - NORTH AMERICAN
- HP: 40
- Full Load RPM: 1785
- Enclosure: WP1
- Frame: 324TP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Full Load RPM | 1800.0 |
|---|---|
| RPM | 1770.0 |
| Frame | 324TP |
| Voltage | 230/460 VAC|230 VAC|460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | H |
| Locked Rotor Amps at Rated Voltage | 345.0 |
| Power Factor | 0.87 |
| Drive End Bottom Bearing | 6213 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Part Winding Start 230V | Yes |
| Down Thrust | 5500.0 |
| Model Number | V2-40D4-W32416A |
| Weight (lbs) | 761.0 |
| Application | Vertical Hollow Shaft |
| HP Range | 40.0 |
| HP | 40.0 |
| GTIN | 192999035733 |
| Motor Enclosure Type | Weather Protected|WP1 |
| RPM Range | 1770.0 |
