UCPA 204 20MM - IPTCI

Bore / Inner Diameter Inch	0.787
Bore / Inner Diameter MM	20
Number of Mounting Holes	2
Bolt Center to Center Inch	2
Bolt Center to Center MM	52
Bearing Locking Style	Set Screw
Rolling Element	Ball Bearing
Housing Material	Cast Iron
Housing Style	2 Bolt Tapped Base Pillow Block
Base to Center Height Inch	1.311
Base to Center Height MM	33.3
Length Across Bore Inch	1.22
Length Across Bore MM	31
Relubricatable	Yes

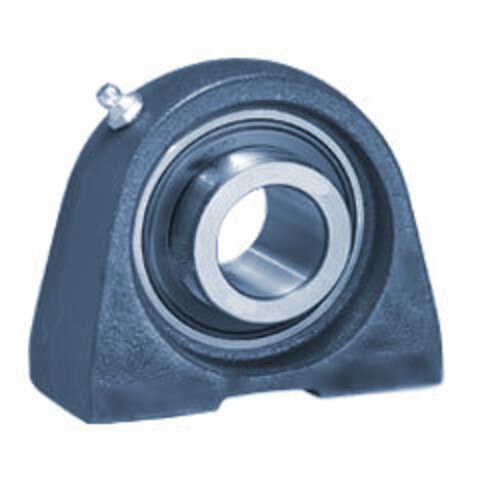

The IPTCI UCPA204-20MM pillow block bearing is a standard-duty industrial bearing assembly that's designed with high durability standards. This product comprises a cast-iron housing and an inner ring insert made of high-strength steel. The roller mechanism is facilitated by ball bearings, which are arranged in a single row between the outer case and the inner pipe. This assembled pillow block bearing is designed for mounting on a flat surface using two mounting holes. The distance between the two mounting holes is 2 inches. With a base length of 2.875 inches, the bearing assembly allows the stable, vibration-free transfer of rotary motion.The bearing's inner bore has a standard 0.787-inch diameter and a total bore length of 1.22 inches. Its assembly comes pre-lubricated with grease. However, the product also allows re-lubrication through a grease hole located at a 45-degree angle from the base of the cast-iron block. The assembly is sealed with a B-type seal, which allows the bearing to withstand adverse operating conditions of pressure, temperature, and speed.
