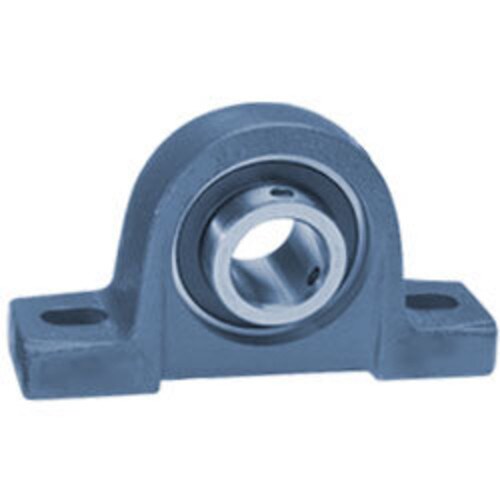

UCP210-50MM-L3 - IPTCI
- Bore / Inner Diameter Inch: 1.969
- Bore / Inner Diameter MM: 50
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 6.3
- Bolt Center to Center MM: 159
- Max Nom Bolt Ctr to Ctr Inch: 0
- Max Nom Bolt Ctr to Ctr MM: 0
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.969 |
|---|---|
| Bore / Inner Diameter MM | 50 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 6.3 |
| Bolt Center to Center MM | 159 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Base to Center Height Inch | 2.252 |
| Base to Center Height MM | 57.2 |
