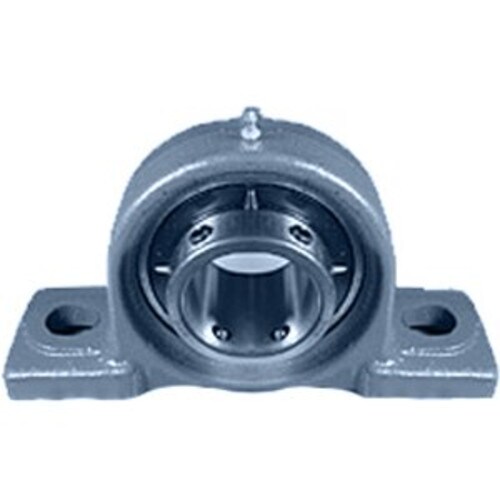

UCP-5/8 - NTN
- Bore / Inner Diameter Inch: 0.625
- Bore / Inner Diameter MM: 15.875
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 3.6
- Bolt Center to Center MM: 92
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.625 |
|---|---|
| Bore / Inner Diameter MM | 15.875 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 3.6 |
| Bolt Center to Center MM | 92 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Base to Center Height Inch | 1.188 |
| Base to Center Height MM | 30.175 |
| Bearing Insert Part Number | A-UC202X-010D1 |
