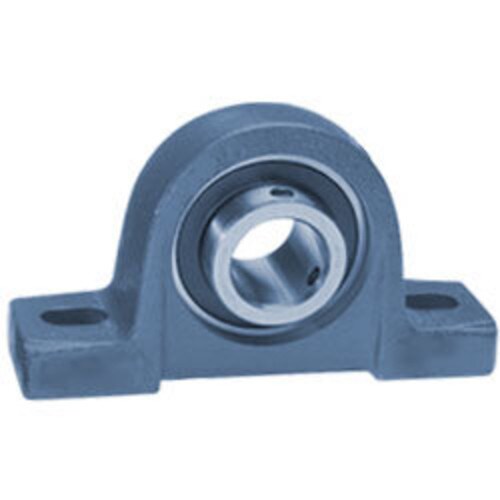

UCP 212 60MM - IPTCI
- Bore / Inner Diameter Inch: 2.362
- Bore / Inner Diameter MM: 60
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 7.4
- Bolt Center to Center MM: 187
- Max Nom Bolt Ctr to Ctr Inch: 0
- Max Nom Bolt Ctr to Ctr MM: 0
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.362 |
|---|---|
| Bore / Inner Diameter MM | 60 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 7.4 |
| Bolt Center to Center MM | 187 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Base to Center Height Inch | 2.756 |
| Base to Center Height MM | 70 |
