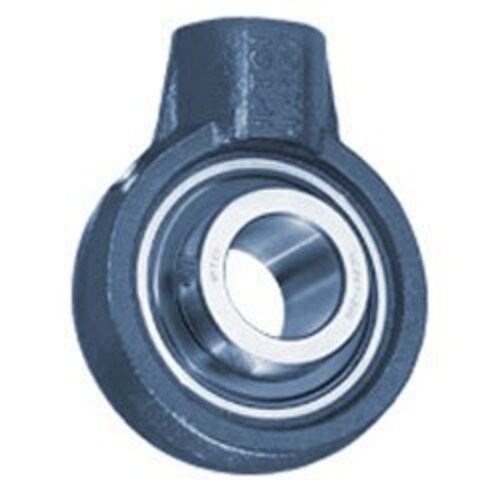

UCHA215-75MM - IPTCI
- Bore / Inner Diameter Inch: 2.953
- Bore / Inner Diameter MM: 75
- Length Across Bore Inch: 3.063
- Length Across Bore MM: 77.8
- Bearing Locking Style: Set Screw
- Housing Material: Cast Iron
- Housing Style: Hanger Unit
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.953 |
|---|---|
| Bore / Inner Diameter MM | 75 |
| Length Across Bore Inch | 3.063 |
| Length Across Bore MM | 77.8 |
| Bearing Locking Style | Set Screw |
| Housing Material | Cast Iron |
| Housing Style | Hanger Unit |
| Base to Center Height Inch | 4.606 |
| Base to Center Height MM | 117 |
| Housing Outside Diameter Inch | 6.535 |
| Housing Outside Diameter MM | 166 |
| Housing Overall Length Inch | 7.874 |
| Housing Overall Length MM | 199.9996 |
