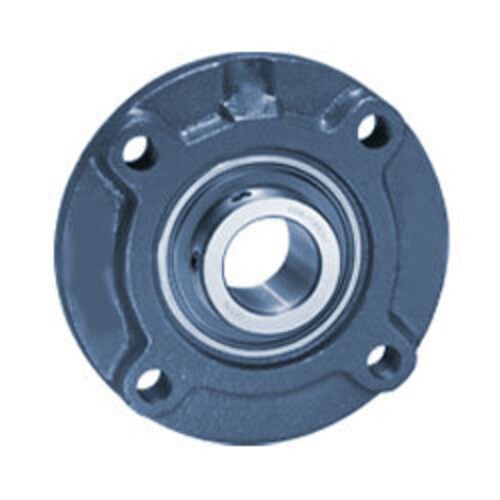

UCFCF 209 28 - IPTCI
- Bore / Inner Diameter Inch: 1.75
- Bore / Inner Diameter MM: 44.45
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 3.6
- Bolt Center to Center MM: 91.9
- Nom Bolt Circle Dia Round Inch: 5.1
- Nom Bolt Circle Dia Round MM: 130
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.75 |
|---|---|
| Bore / Inner Diameter MM | 44.45 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 3.6 |
| Bolt Center to Center MM | 91.9 |
| Nom Bolt Circle Dia Round Inch | 5.1 |
| Nom Bolt Circle Dia Round MM | 130 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.937 |
| Length Across Bore MM | 49.2 |
| Cartridge Pilot Depth Inch | 0.469 |
| Cartridge Pilot Depth MM | 11.9 |
| Cartridge Pilot Diameter Inch | 4.25 |
| Cartridge Pilot Diameter MM | 107.95 |
