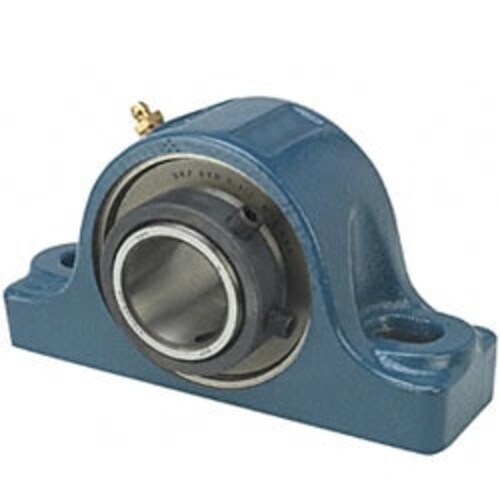

SYR 3 H - SKF
- Bore / Inner Diameter Inch: 3
- Bore / Inner Diameter MM: 76.2
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 8.1
- Bolt Center to Center MM: 206.4
- Max Nom Bolt Ctr to Ctr Inch: 8.438
- Max Nom Bolt Ctr to Ctr MM: 214.325
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3 |
|---|---|
| Bore / Inner Diameter MM | 76.2 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 8.1 |
| Bolt Center to Center MM | 206.4 |
| Max Nom Bolt Ctr to Ctr Inch | 8.438 |
| Max Nom Bolt Ctr to Ctr MM | 214.325 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Min Nom Bolt Ctr to Ctr Inch | 7.813 |
| Min Nom Bolt Ctr to Ctr MM | 198.45 |
| Base to Center Height Inch | 3.25 |
| Base to Center Height MM | 82.55 |
