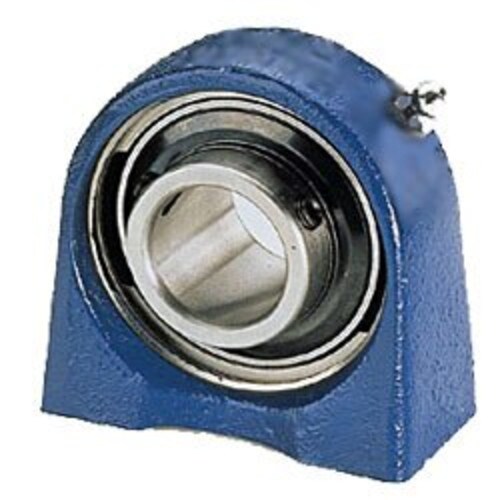

SYF 20 TF - SKF
- Bore / Inner Diameter Inch: 0.787
- Bore / Inner Diameter MM: 20
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 2
- Bolt Center to Center MM: 52
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.787 |
|---|---|
| Bore / Inner Diameter MM | 20 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 2 |
| Bolt Center to Center MM | 52 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Tapped Base Pillow Block |
| Base to Center Height Inch | 1.311 |
| Base to Center Height MM | 33.3 |
| Length Across Bore Inch | 1.22 |
| Length Across Bore MM | 31 |
| Relubricatable | Yes |
