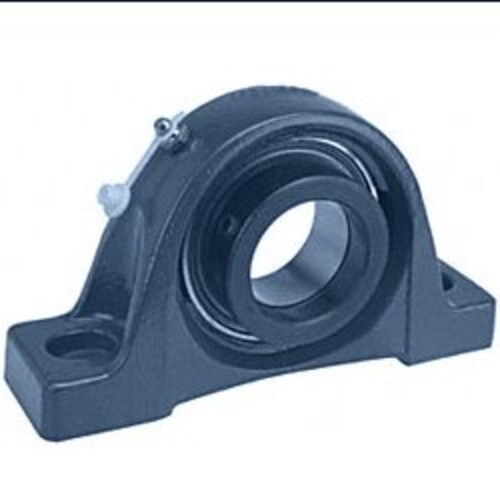

SY 30 FM - SKF
- Bore / Inner Diameter Inch: 1.181
- Bore / Inner Diameter MM: 30
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 4.6
- Bolt Center to Center MM: 117.5
- Max Nom Bolt Ctr to Ctr Inch: 0
- Max Nom Bolt Ctr to Ctr MM: 0
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.181 |
|---|---|
| Bore / Inner Diameter MM | 30 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 4.6 |
| Bolt Center to Center MM | 117.5 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Base to Center Height Inch | 1.689 |
| Base to Center Height MM | 42.9 |
