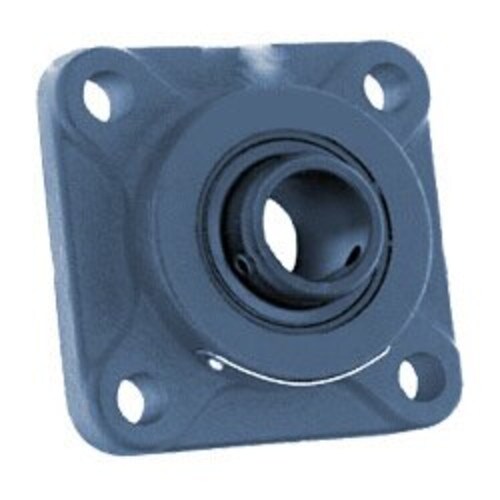

SF-28 - SEALMASTER
- Bore / Inner Diameter Inch: 1.75
- Bore / Inner Diameter MM: 44.45
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 4.125
- Bolt Center to Center MM: 104.78
- Nom Bolt Circle Dia Round Inch: 5.8
- Nom Bolt Circle Dia Round MM: 148
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.75 |
|---|---|
| Bore / Inner Diameter MM | 44.45 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 4.125 |
| Bolt Center to Center MM | 104.78 |
| Nom Bolt Circle Dia Round Inch | 5.8 |
| Nom Bolt Circle Dia Round MM | 148 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 1.938 |
| Length Across Bore MM | 49.225 |
