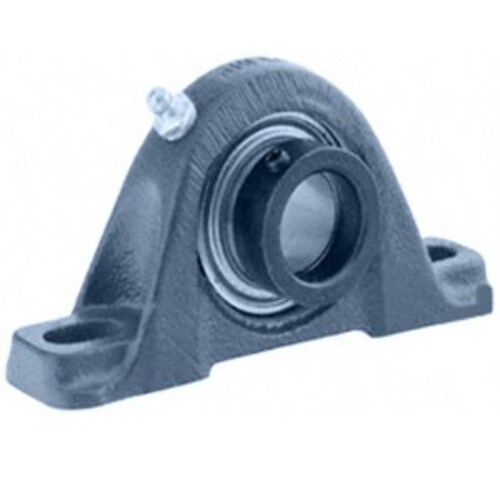

RAK1 - TIMKEN
- Bore / Inner Diameter Inch: 1
- Bore / Inner Diameter MM: 25.4
- Number of Mounting Holes: 2
- Bolt Center to Center Inch: 4.1
- Bolt Center to Center MM: 105
- Bearing Locking Style: Eccentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 |
|---|---|
| Bore / Inner Diameter MM | 25.4 |
| Number of Mounting Holes | 2 |
| Bolt Center to Center Inch | 4.1 |
| Bolt Center to Center MM | 105 |
| Bearing Locking Style | Eccentric Collar |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | G1100KRRB |
