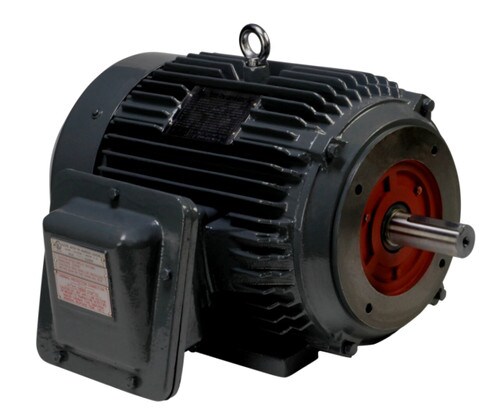

PEXP324TSC-40-2 - NORTH AMERICAN
- HP: 40
- Phase: Three
- Full Load RPM: 3565
- Enclosure: TEXP
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Full Load RPM | 3600.0 |
|---|---|
| RPM | 3600.0 |
| Frame | 324TSC |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 290.0 |
| Power Factor | 0.88 |
| Drive End Bottom Bearing | 6312/C3 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | PEXP324TSC-40-2 |
| Weight (lbs) | 710.0 |
| Application | Explosion Proof |
| HP Range | 40.0 |
| HP | 40.0 |
| GTIN | 192999056615 |
| Motor Enclosure Type | Explosion Proof|TEXP|Totally Enclosed |
| RPM Range | 3600.0 |
