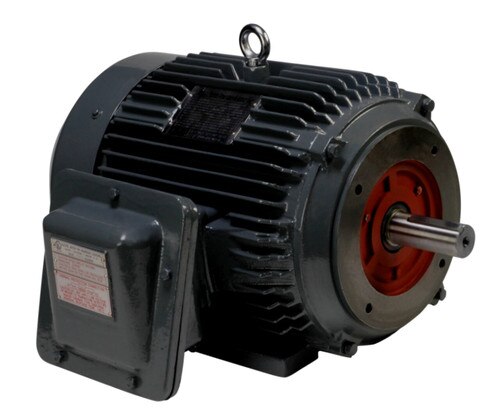

PEXP145TC-2-4 - NORTH AMERICAN
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 145TC |
| Full Load Amps at Rated Voltage | 69.5 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 95.0 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | L |
| Locked Rotor Amps at Rated Voltage | 25.0 |
| Power Factor | 0.8 |
| Drive End Bottom Bearing | 6205-2Z |
| Opposite Drive End Upper Bearing | 6313 |
| Drive End Upper Bearing | 6313 |
| Opposite Drive End Bottom Bearing | 6313 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | PEXP145TC-2-4 |
| Weight (lbs) | 88.0 |
| Application | Explosion Proof |
| HP Range | 2.0 |
| HP | 2.0 |
| GTIN | 192999010860 |
| Enclosure Height Inch | 18.5 |
| Enclosure Height MM | 469.9 |
| Enclosure Length Inch | 35.0 |
| Enclosure Length MM | 889.0 |
| Motor Enclosure Type | Explosion Proof|TEXP|Totally Enclosed |
| RPM Range | 1800.0 |
