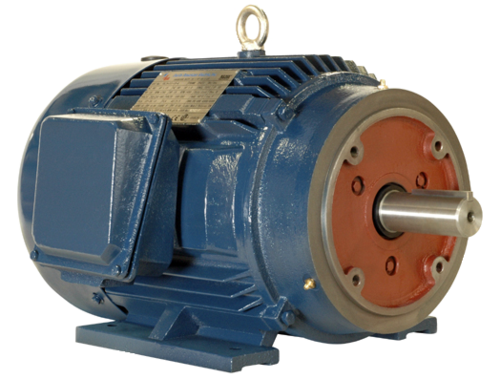

PE324TC-40-4 - NORTH AMERICAN
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 324TC |
| Full Load Amps at Rated Voltage | 145.0 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 95.4 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 290.0 |
| Power Factor | 0.83 |
| Drive End Bottom Bearing | 6312.0 |
| Opposite Drive End Upper Bearing | 6318.0 |
| Drive End Upper Bearing | 6319.0 |
| Opposite Drive End Bottom Bearing | 6318.0 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Flange Mount Style | C-Flange with Feet |
| Model Number | PE324TC-40-4 |
| Weight (lbs) | 551.0 |
| Application | Heavy Duty |
| HP Range | 40.0 |
| HP | 40.0 |
| GTIN | 192999006658 |
| Enclosure Height Inch | 22.1 |
| Enclosure Height MM | 561.34 |
| Enclosure Length Inch | 44.3 |
| Enclosure Length MM | 1125.22 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
