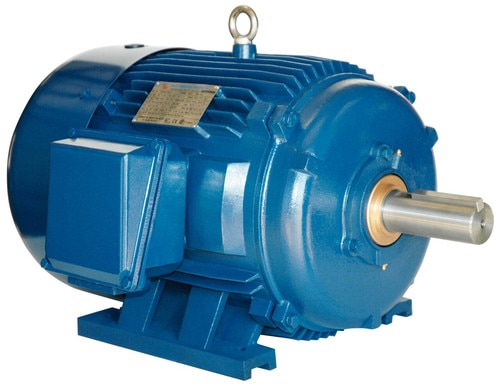

PE324T-25-6-575V - NORTH AMERICAN
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1200.0 |
| RPM | 1200.0 |
| Frame | 324T |
| Full Load Amps at Rated Voltage | 124.0 |
| Frequency Hz | 60.0 |
| Voltage | 575 VAC |
| Full Load Efficiency Percentage | 90.2 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 146.0 |
| Power Factor | 0.78 |
| Drive End Bottom Bearing | 6312 |
| Opposite Drive End Upper Bearing | 6318.0 |
| Drive End Upper Bearing | NU319 |
| Opposite Drive End Bottom Bearing | 6318.0 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE324T-25-6-575V |
| Weight (lbs) | 508.0 |
| Application | Heavy Duty |
| HP Range | 25.0 |
| HP | 25.0 |
| GTIN | 192999055151 |
| Enclosure Height Inch | 22.6 |
| Enclosure Height MM | 574.04 |
| Enclosure Length Inch | 39.5 |
| Enclosure Length MM | 1003.3 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1200.0 |
