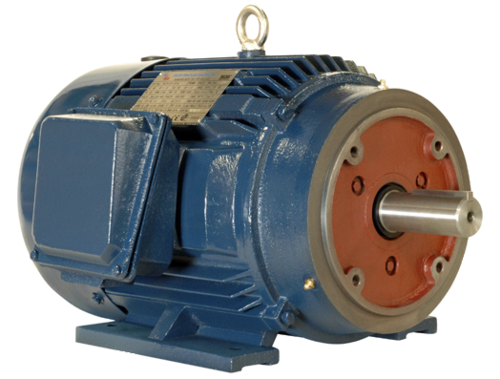

PE286TC-30-4C - NORTH AMERICAN
| Material | Cast Iron |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 286TC |
| Full Load Amps at Rated Voltage | 58.3 |
| Frequency Hz | 60.0 |
| Voltage | 208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC |
| Full Load Efficiency Percentage | 94.5 |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | C |
| NEMA Code | G |
| Locked Rotor Amps at Rated Voltage | 217.0 |
| Power Factor | 0.86 |
| Drive End Bottom Bearing | 6311 |
| Opposite Drive End Upper Bearing | 6312/C3 |
| Drive End Upper Bearing | 6312/C3 |
| Opposite Drive End Bottom Bearing | 6312/C3 |
| Inverter Rated or Duty | Inverter Duty |
| Phase | Three Phase |
| Model Number | PE286TC-30-4C |
| Weight (lbs) | 409.0 |
| Application | Crusher Duty |
| HP Range | 30.0 |
| HP | 30.0 |
| GTIN | 192999006382 |
| Enclosure Height Inch | 15.9 |
| Enclosure Height MM | 403.86 |
| Enclosure Length Inch | 26.05 |
| Enclosure Length MM | 661.67 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
