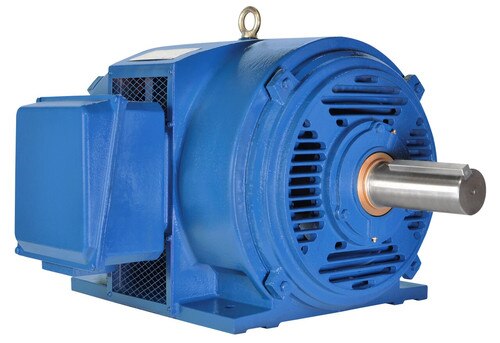

PE256T-20-4-ODP - NORTH AMERICAN

$1,584.44

Shipping & Returns

SPECIFICATIONS

Resources

MaterialCast Iron
Full Load RPM1800.0
RPM1800.0
Frame256T
Full Load Amps at Rated Voltage4.6
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage88.5
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeG
Locked Rotor Amps at Rated Voltage145.0
Power Factor0.84
Drive End Bottom Bearing6309.0
Opposite Drive End Upper Bearing6306-ZZ
Drive End Upper Bearing6306-ZZ
Opposite Drive End Bottom Bearing6306-ZZ
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Model NumberPE256T-20-4-ODP
Weight (lbs)304.0
ApplicationHeavy Duty
HP Range20.0
HP20.0
GTIN192999015018
Enclosure Height Inch9.1
Enclosure Height MM231.14
Enclosure Length Inch17.1
Enclosure Length MM434.34
Motor Enclosure TypeODP|Open
RPM Range1800.0
