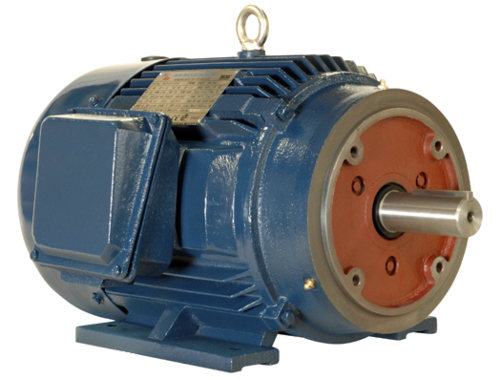

PE184TC-5-4 - NORTH AMERICAN

$638.78

Shipping & Returns

SPECIFICATIONS

Resources

MaterialCast Iron
Full Load RPM1800.0
RPM1800.0
Frame184TC
Full Load Amps at Rated Voltage18.2
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage92.4
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeJ
Locked Rotor Amps at Rated Voltage46.0
Power Factor0.78
Drive End Bottom Bearing6306-ZZ
Opposite Drive End Upper Bearing6309
Drive End Upper Bearing6309
Opposite Drive End Bottom Bearing6309
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Model NumberPE184TC-5-4
Weight (lbs)101.0
ApplicationHeavy Duty
HP Range5.0
HP5.0
GTIN192999004890
Enclosure Height Inch13.2
Enclosure Height MM335.28
Enclosure Length Inch27.58
Enclosure Length MM700.532
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range1800.0
