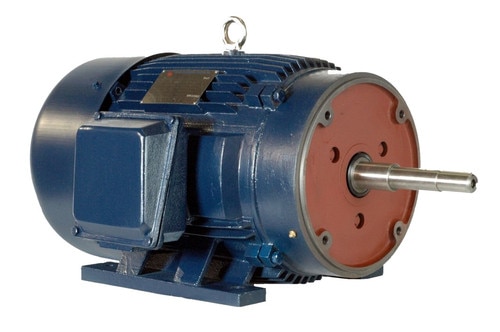

PE184JP-7.5-2 - NORTH AMERICAN

$800.29

Shipping & Returns

SPECIFICATIONS

Resources

MaterialCast Iron
Full Load RPM3600.0
RPM3600.0
Frame184JP
Full Load Amps at Rated Voltage12.8
Frequency Hz60.0
Voltage208/230/460 VAC|208 VAC|230 VAC|460 VAC|230/460 VAC
Full Load Efficiency Percentage91.0
Service Factor1.15
Insulation ClassF
NEMA DesignB
NEMA CodeH
Locked Rotor Amps at Rated Voltage63.0
Power Factor0.9
Drive End Bottom Bearing6208-ZZ
Opposite Drive End Upper Bearing6309
Drive End Upper Bearing6309
Opposite Drive End Bottom Bearing6309
Inverter Rated or DutyInverter Duty
PhaseThree Phase
Model NumberPE184JP-7.5-2
Weight (lbs)119.0
ApplicationClose Coupled Pump
HP Range7.5
HP7.5
GTIN192999026212
Enclosure Height Inch13.2
Enclosure Height MM335.28
Enclosure Length Inch25.0
Enclosure Length MM635.0
Motor Enclosure TypeTotally Enclosed|TEFC
RPM Range3600.0
