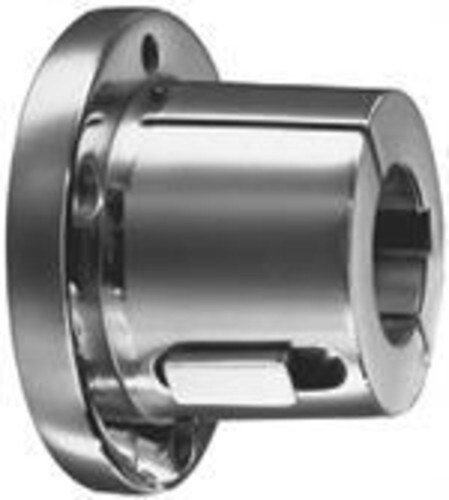

P1X1 - B & B MANUFACTURING
- Bushing Style: P1
- Bore Type: Finished Bore
- Bore / Inner Diameter Inch: 1
- Minimum Bore Inch: 0.500
SPECIFICATIONS
| Bushing Style | P1 |
|---|---|
| Bore Type | Finished Bore |
| Bore / Inner Diameter Inch | 1 |
| Minimum Bore Inch | 0.500 |
| Maximum Bore Inch | 1.4375 |
| Bore / Inner Diameter MM | 25.4 |
| Thread Size | 5/16 X 1 |
| D Large | 1.938 |
| D Small | 1.856 |
| H Dim Inch | 3 |
| I Dim Inch | 1.938 |
| T Dim Inch | 1.531 |
| U Dim Inch | 0.406 |
| V Dim Inch | 2.438 |
| W Dim Inch | 0.375 |
| X Dim Inch | 1.313 |
| Y Dim Inch | 0.219 |
| Torque Capacity Lb/Inch | 192 |
| Material | Steel |
| Finish | Black Oxide |
