M802048-2 - TIMKEN

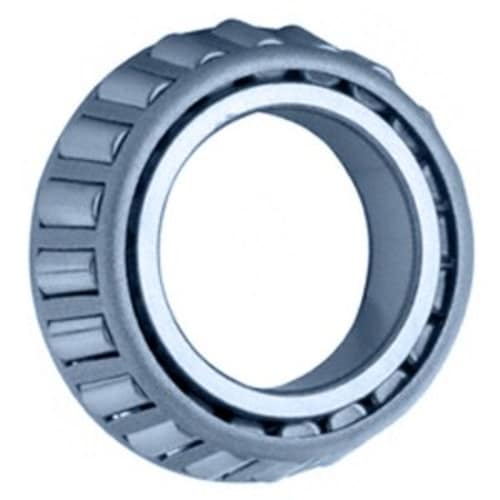

- M802048-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1 5/8 |
|---|---|
| Bore / Inner Diameter MM | 41.275 |
| Cone Width Inch | 1.0100 |
| Cone Width MM | 25.654 |
| Model Number | M802048 |
| Series | Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 91700 |
| Dynamic Load Capacity lbf | 20600 |
| Static Load Capacity N | 112000 |
| Static Load Capacity lbf | 25300 |
| Rating | Standard |
| Weight (lbs) | 0.924 |
