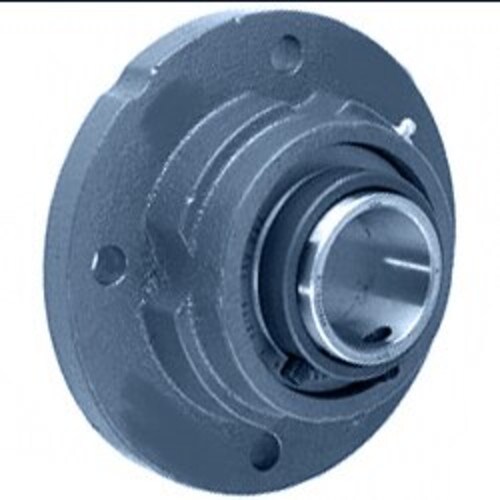

FYR 3-1/2 - SKF
- Bore / Inner Diameter Inch: 3.5
- Bore / Inner Diameter MM: 88.9
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 6.7
- Bolt Center to Center MM: 170.2
- Nom Bolt Circle Dia Round Inch: 9.5
- Nom Bolt Circle Dia Round MM: 241
- Bearing Locking Style: Concentric Collar
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3.5 |
|---|---|
| Bore / Inner Diameter MM | 88.9 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 6.7 |
| Bolt Center to Center MM | 170.2 |
| Nom Bolt Circle Dia Round Inch | 9.5 |
| Nom Bolt Circle Dia Round MM | 241 |
| Bearing Locking Style | Concentric Collar |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Block |
| Expansion / Non-Expansion | Expansion |
| Length Across Bore Inch | 4.031 |
| Length Across Bore MM | 102.4 |
