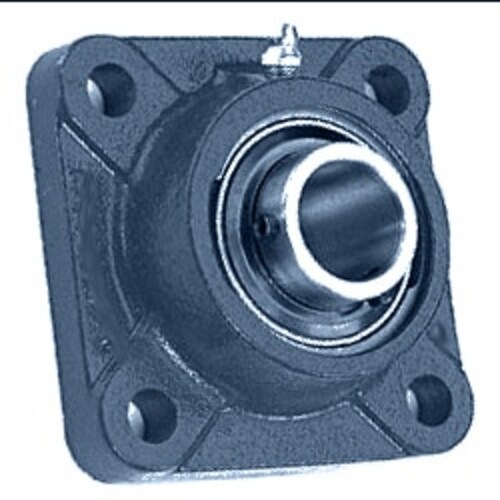

FYJ 80 TF - SKF
- Bore / Inner Diameter Inch: 3.15
- Bore / Inner Diameter MM: 80
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 6.496
- Bolt Center to Center MM: 165
- Nom Bolt Circle Dia Round Inch: 9.2
- Nom Bolt Circle Dia Round MM: 233.3
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3.15 |
|---|---|
| Bore / Inner Diameter MM | 80 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 6.496 |
| Bolt Center to Center MM | 165 |
| Nom Bolt Circle Dia Round Inch | 9.2 |
| Nom Bolt Circle Dia Round MM | 233.3 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Square Flange Block |
| Expansion / Non-Expansion | Non-expansion |
| Length Across Bore Inch | 3.067 |
| Length Across Bore MM | 77.9 |
