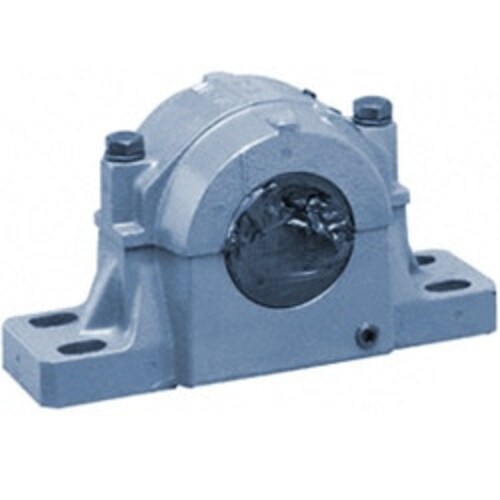

FSAF 22617 - SKF
- Bore / Inner Diameter Inch: 2.938
- Bore / Inner Diameter MM: 74.625
- Number of Mounting Holes: 4
- Bolt Center to Center Inch: 12.4
- Bolt Center to Center MM: 315
- Max Nom Bolt Ctr to Ctr Inch: 13.125
- Max Nom Bolt Ctr to Ctr MM: 333.375
- Bearing Locking Style: Tapered Adapter Sleeve
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.938 |
|---|---|
| Bore / Inner Diameter MM | 74.625 |
| Number of Mounting Holes | 4 |
| Bolt Center to Center Inch | 12.4 |
| Bolt Center to Center MM | 315 |
| Max Nom Bolt Ctr to Ctr Inch | 13.125 |
| Max Nom Bolt Ctr to Ctr MM | 333.375 |
| Bearing Locking Style | Tapered Adapter Sleeve |
| Rolling Element | Spherical Roller Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Pillow Block |
| Expansion / Non-Expansion | Expansion |
| Min Nom Bolt Ctr to Ctr Inch | 11.625 |
| Min Nom Bolt Ctr to Ctr MM | 295.275 |
| Base to Center Height Inch | 4.5 |
| Base to Center Height MM | 114.3 |
| Bearing Insert Part Number | 22317 CCK/W33 |
