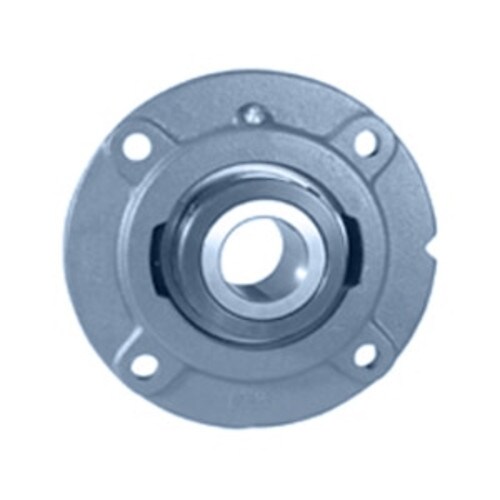

FCU363 - LINK-BELT
- Bore / Inner Diameter Inch: 3.938
- Bore / Inner Diameter MM: 100.025
- Number of Mounting Holes: 4
- Nom Bolt Circle Dia Round Inch: 12.4
- Nom Bolt Circle Dia Round MM: 315
- Bearing Locking Style: Set Screw
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3.938 |
|---|---|
| Bore / Inner Diameter MM | 100.025 |
| Number of Mounting Holes | 4 |
| Nom Bolt Circle Dia Round Inch | 12.4 |
| Nom Bolt Circle Dia Round MM | 315 |
| Bearing Locking Style | Set Screw |
| Rolling Element | Ball Bearing |
| Housing Material | Cast Iron |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Expansion / Non-Expansion | Non-expansion |
| Bearing Insert Part Number | UG363L |
| Length Across Bore Inch | 5.563 |
| Length Across Bore MM | 141.3 |
| Cartridge Pilot Depth Inch | 1.375 |
| Cartridge Pilot Depth MM | 34.925 |
| Cartridge Pilot Diameter Inch | 11 |
| Cartridge Pilot Diameter MM | 279.4 |
| Mounting Bolts Inch | 3/4 |
| Note | Link Belt is Owned by Rexnord |
