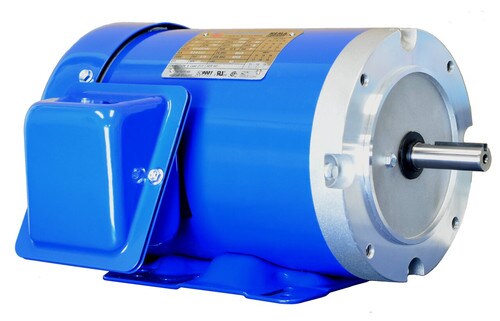

F56C1/2M4A-575V - NORTH AMERICAN
This product has superseded F56C1/2M4D
- HP: 0.5
- Phase: Three
- Full Load RPM: 1770
- Enclosure: TEFC
NEMA DESIGN B
- Maximum 5% Slip
- High To Medium Starting Current
- Normal Locked Rotor Torque
- Normal Breakdown Torque
- Suited For A Broad Variety Of Applications - Like Fans And Pumps
SPECIFICATIONS
| Material | Rolled Steel |
|---|---|
| Full Load RPM | 1800.0 |
| RPM | 1800.0 |
| Frame | 56C |
| Voltage | 575 VAC |
| Service Factor | 1.15 |
| Insulation Class | F |
| NEMA Design | B |
| NEMA Code | J |
| Locked Rotor Amps at Rated Voltage | 3.4 |
| Power Factor | 0.69 |
| Drive End Bottom Bearing | 6203-2RZC3 |
| Inverter Rated or Duty | Inverter Rated |
| Phase | Three Phase |
| Model Number | F56C1/2M4A-575V |
| Weight (lbs) | 22.0 |
| HP Range | 0.5 |
| HP | 0.5 |
| GTIN | 192999058947 |
| Motor Enclosure Type | Totally Enclosed|TEFC |
| RPM Range | 1800.0 |
