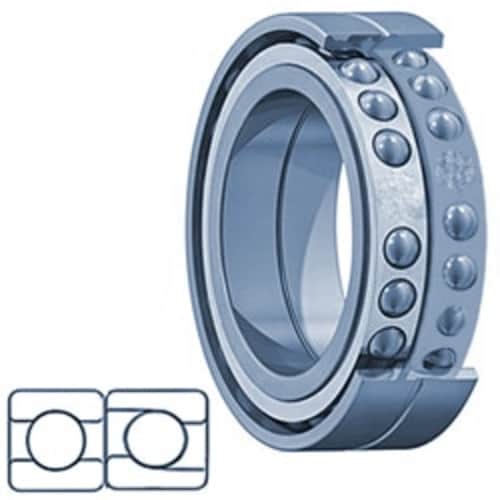

BA2B 459313 - SKF
- Bore / Inner Diameter Inch: 2.559
- Bore / Inner Diameter MM: 65
- Outside Diameter Inch: 5.512
- Outside Diameter MM: 140
- Width Inch: 2.559
- Width MM: 65
- Seal Type: Open
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2.559 |
|---|---|
| Bore / Inner Diameter MM | 65 |
| Outside Diameter Inch | 5.512 |
| Outside Diameter MM | 140 |
| Width Inch | 2.559 |
| Width MM | 65 |
| Seal Type | Open |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 3, ABEC 1 |
| Contact Angle | 40 Degree |
| Number of Bearings | 2 (1 Pair) |
| Cage Material | Phenolic or Brass |
| Flush Ground | Yes |
| Contact Angle 2 | 35 Degree |
| Bearing Arrangement | Duplex-Back to Back |
| Raceway Style | 2 Rib Inner Ring and Outer Ring or 1 Rib Inner Ring and Outer Ring |
| Ball Material | Steel |
