663-2 - TIMKEN

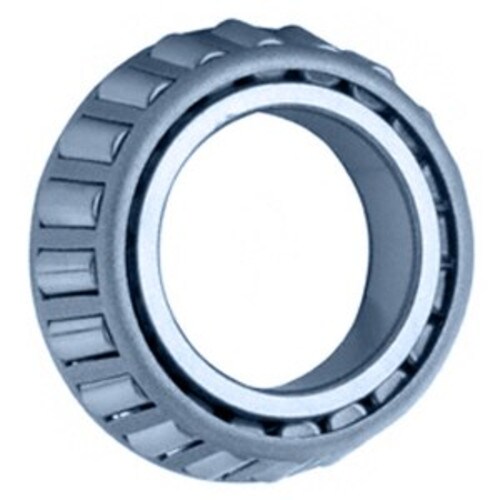

- 663-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 3 1/4 |
|---|---|
| Bore / Inner Diameter MM | 82.55 |
| Cone Width Inch | 1.6250 |
| Cone Width MM | 41.275 |
| Model Number | 663 |
| Series | 655 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 247000 |
| Dynamic Load Capacity lbf | 55500 |
| Static Load Capacity N | 335000 |
| Static Load Capacity lbf | 75300 |
| Rating | Class 2 |
| Inner Ring Width Inch | 1.625 |
| Inner Ring Width MM | 41.3 |
| Weight (lbs) | 4.211 |
