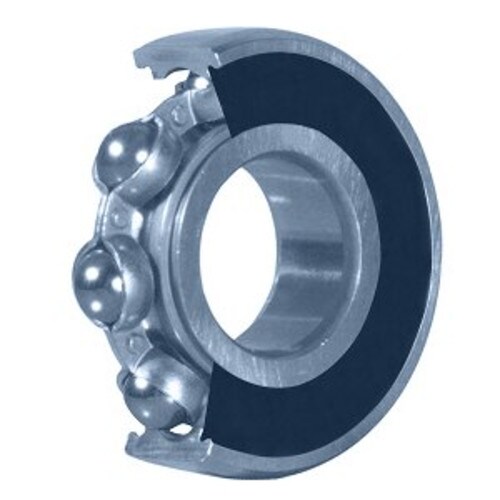

6206DU - NSK
- Bore / Inner Diameter Inch: 1.181
- Bore / Inner Diameter MM: 30
- Outside Diameter Inch: 2.441
- Outside Diameter MM: 62
- Enclosure Type: Contact Seal
- Seal Type: 1 Seal
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.181 |
|---|---|
| Bore / Inner Diameter MM | 30 |
| Outside Diameter Inch | 2.441 |
| Outside Diameter MM | 62 |
| Enclosure Type | Contact Seal |
| Seal Type | 1 Seal |
| Snap Ring | No |
| Rolling Element | Ball Bearing |
| Precision Class | ABEC 1 |
| Cage Material | Steel |
| Internal Fit / Preload | C0 |
| Snap Ring Groove | No |
| Outer Race Width Inch | 0.63 |
| Outer Race Width MM | 16 |
