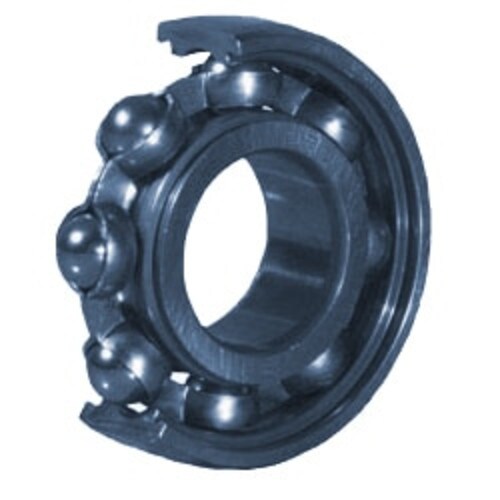

6203 - SKF
- Bore / Inner Diameter Inch : 0.669
- Bore / Inner Diameter MM : 17.0
- Outside Diameter Inch : 1.575
- Outside Diameter MM : 40.0
- Width Inch : 0.472
- Width MM : 12.0
SPECIFICATIONS
| Bore / Inner Diameter Inch | 0.669 |
|---|---|
| Bore / Inner Diameter MM | 17.0 |
| Outside Diameter Inch | 1.575 |
| Outside Diameter MM | 40.0 |
| Width Inch | 0.472 |
| Width MM | 12.0 |
| Dynamic Load Capacity N | 2237.0 |
| Static Load Capacity N | 1068.0 |
| Max Speed RPM | 38000.0 |
| Limiting Speed RPM | 24000.0 |
| Weight (kg) | 0.065 |
| Model Number | 6203 |
