421-2 - TIMKEN

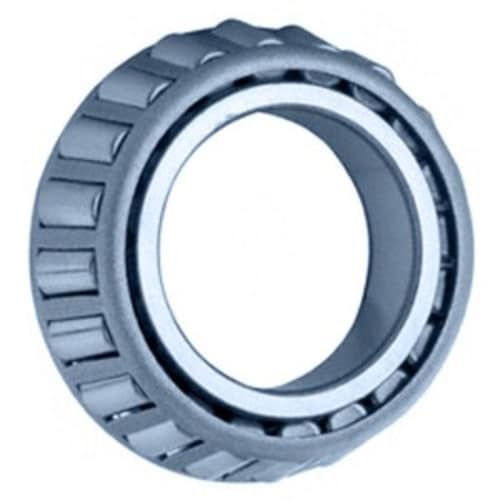

- 421-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 1.3780 |
|---|---|
| Bore / Inner Diameter MM | 35.001 |
| Cone Width Inch | 1.1450 |
| Cone Width MM | 29.083 |
| Model Number | 421 |
| Series | Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 116000 |
| Dynamic Load Capacity lbf | 26000 |
| Static Load Capacity N | 124000 |
| Static Load Capacity lbf | 28000 |
| Rating | Class 2 |
| Inner Ring Width Inch | 1.145 |
| Inner Ring Width MM | 29.1 |
| Weight (lbs) | 1.21 |
