3958-2 - TIMKEN

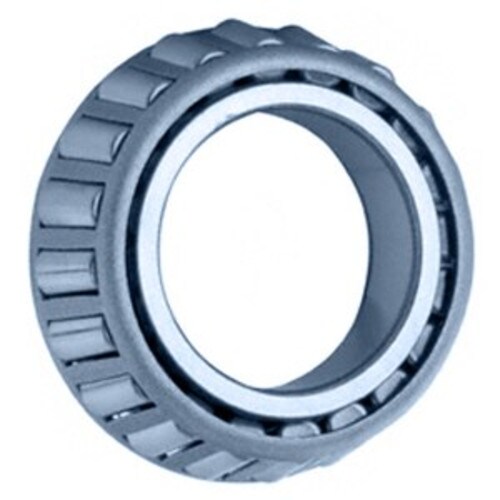

- 3958-2 - TIMKEN Tapered Roller Bearing Cones
- The most basic and most widely used type of tapered roller bearing, TIMKEN TS bearings consist of two main separable parts: the cone or inner ring and the cup or outer ring. The components are typically mounted in opposing pairs on a shaft.
SPECIFICATIONS
| Bore / Inner Diameter Inch | 2 1/4 |
|---|---|
| Bore / Inner Diameter MM | 57.15 |
| Cone Width Inch | 1.4330 |
| Cone Width MM | 36.398 |
| Model Number | 3958 |
| Series | 3900 Single Cone Imperial Single Cone Imperial |
| In Or Metric | Imperial |
| Dynamic Load Capacity N | 139000 |
| Dynamic Load Capacity lbf | 31200 |
| Static Load Capacity N | 191000 |
| Static Load Capacity lbf | 43000 |
| Rating | Standard |
| Weight (lbs) | 2.49 |
